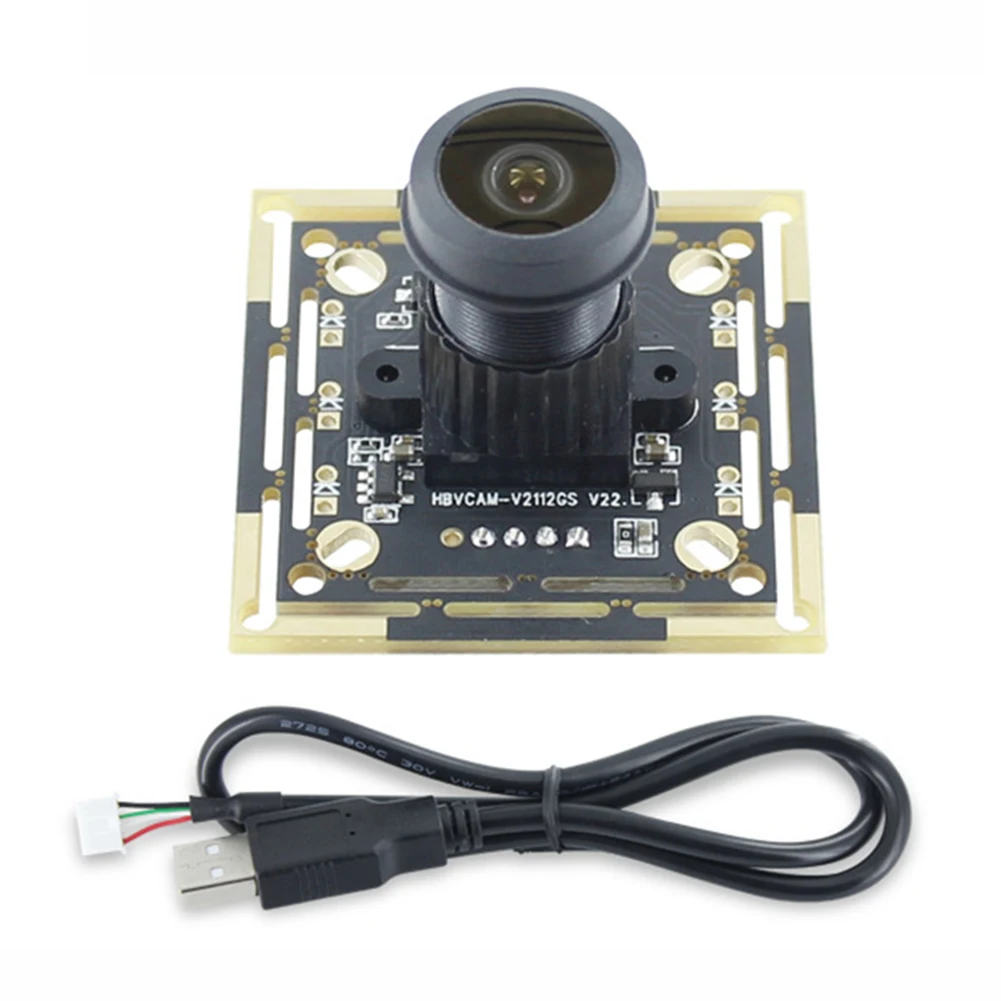

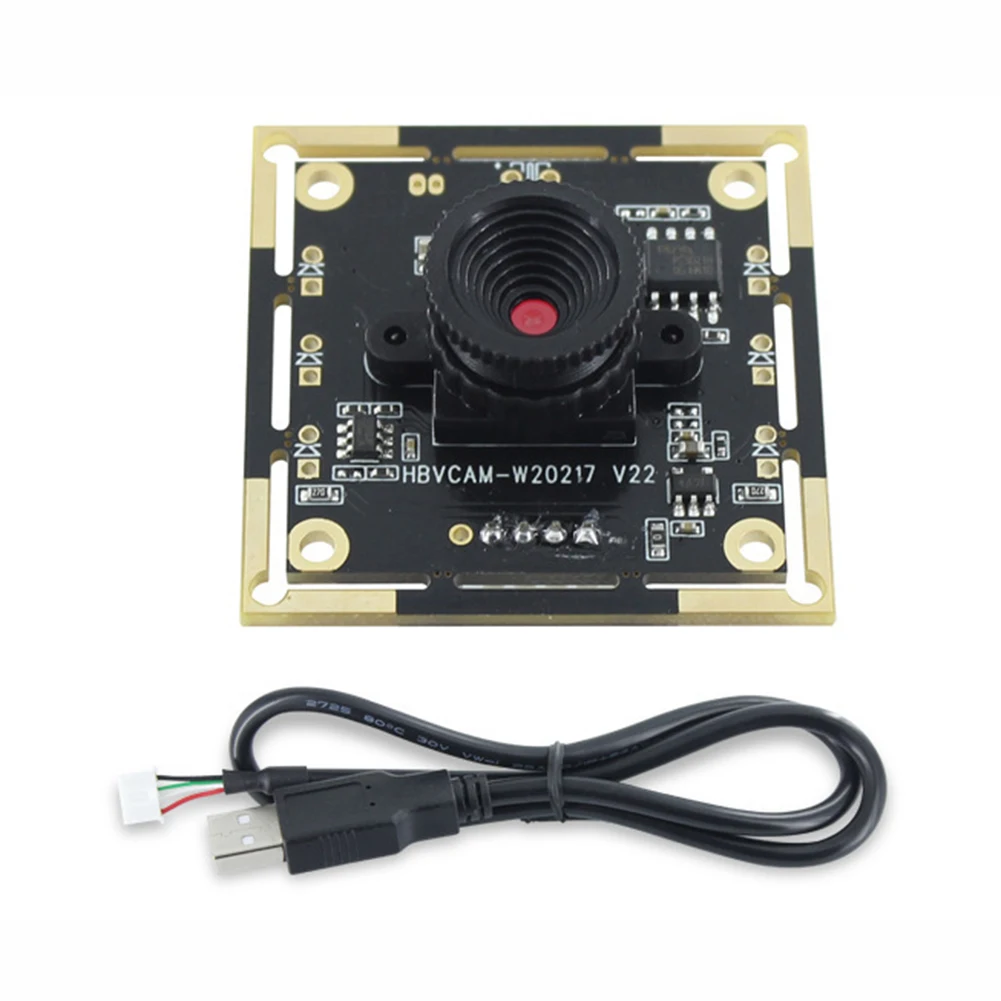

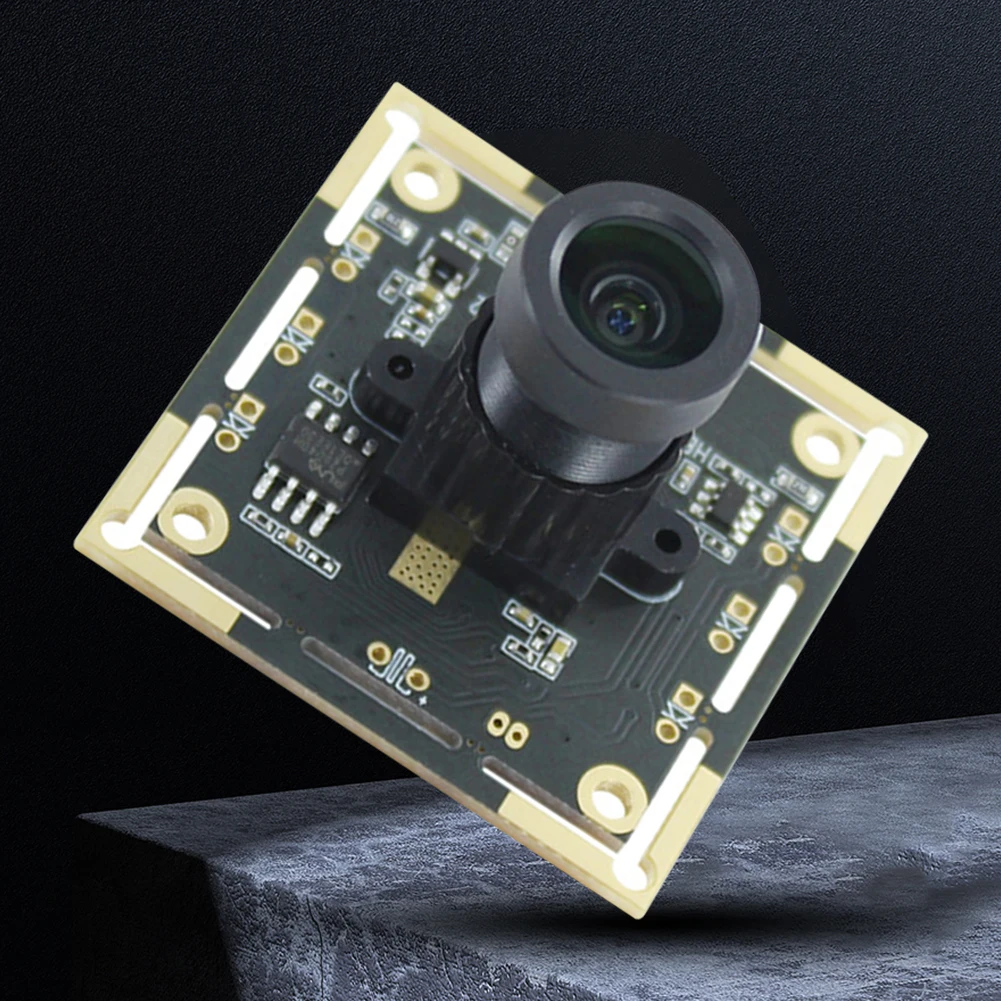

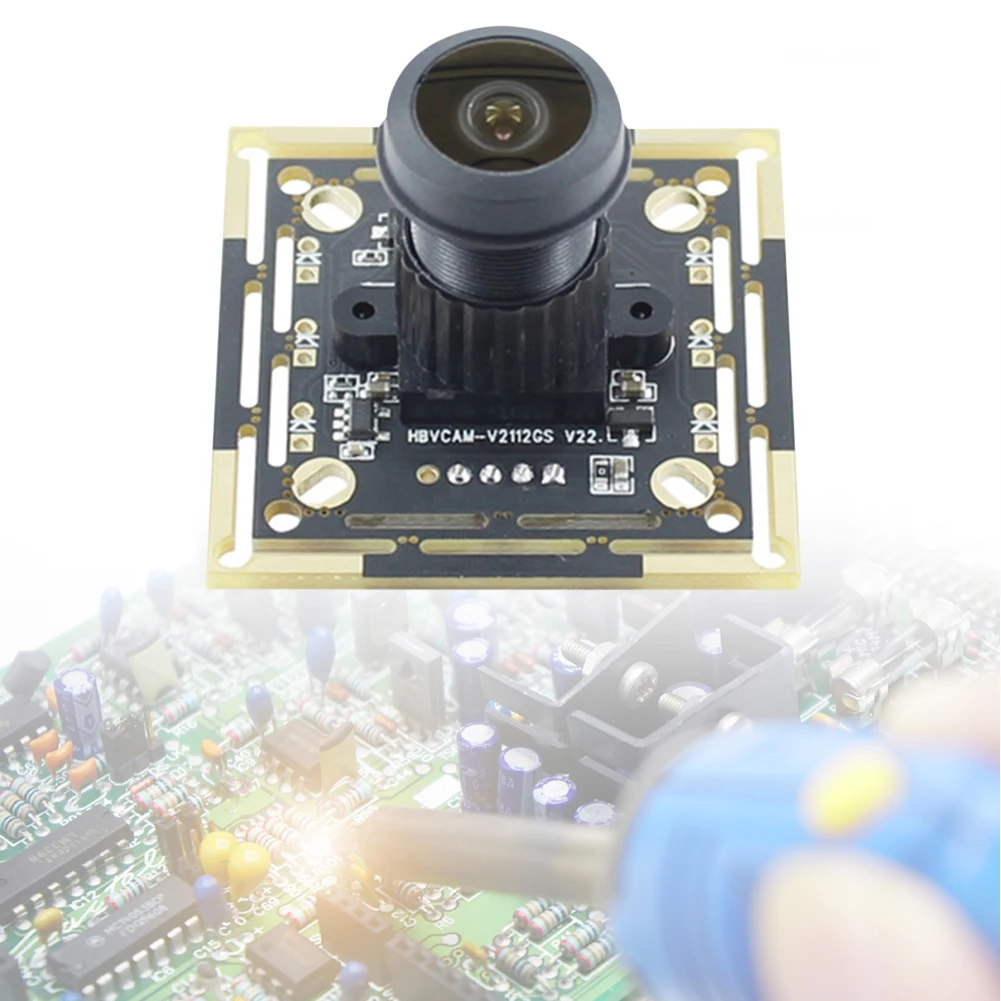

OV9732 Camera Module Board 720P 1MP Lens Monitoring Module 1280x720 60/72/100/160/180 Degree Adjustable Manual-focus MJPG/YUY2 for Face Recognition Projects
Feature:
1. High-Resolution Imaging: The camera module board features a 1-megapixel high-definition lens that delivers clearer, more detailed images. This ensures superior image quality for all your projects and applications.
2. Advanced Sensor Technology: Equipped with the OV9732 high-definition sensor chip, the video camera module offers stable and reliable performance, making it ideal for continuous and demanding use.
3. Wide Viewing Angles: Choose between 72-degree and 100-degree field of view options with the lens monitoring module. This feature provides a broader visual range, allowing for expansive coverage in surveillance and monitoring tasks.

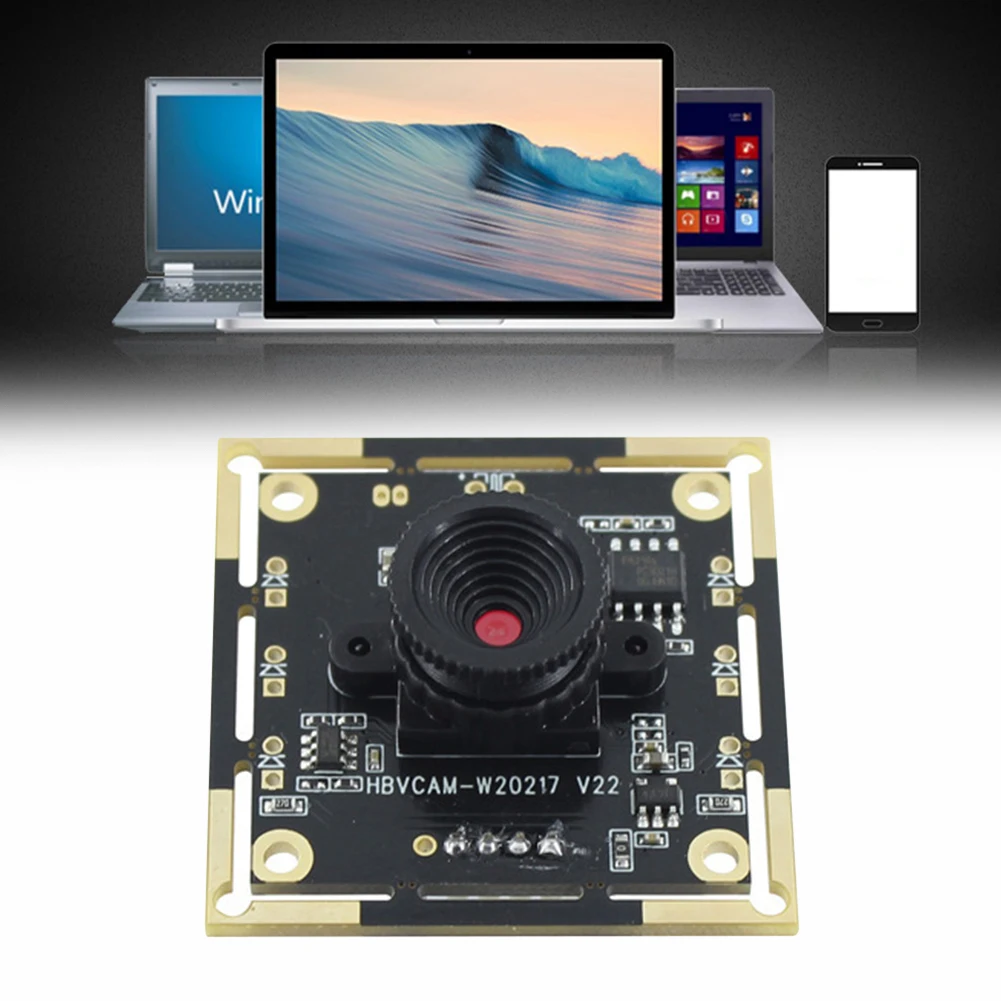

4. Universal Compatibility: The camera module supports a wide range of operating systems including Compatible with WinXP, Win7, Win8, Win10, Linux, and for Android. It is OTG UVC compliant and features a USB interface for driver-free, plug-and-play functionality, making it incredibly versatile and easy to integrate into various setups.
5. Diverse Applications: Ideal for a multitude of applications, the USB camera module is extensively used in fields like license plate recognition, facial recognition, drone aerial photography, high-altitude cameras, QR code access control systems, and robotics, enhancing its utility across different technologies and industries.



Specification:
Origin: Mainland China
Material: ABS
Side length: approx. 38mm/1.5 inches

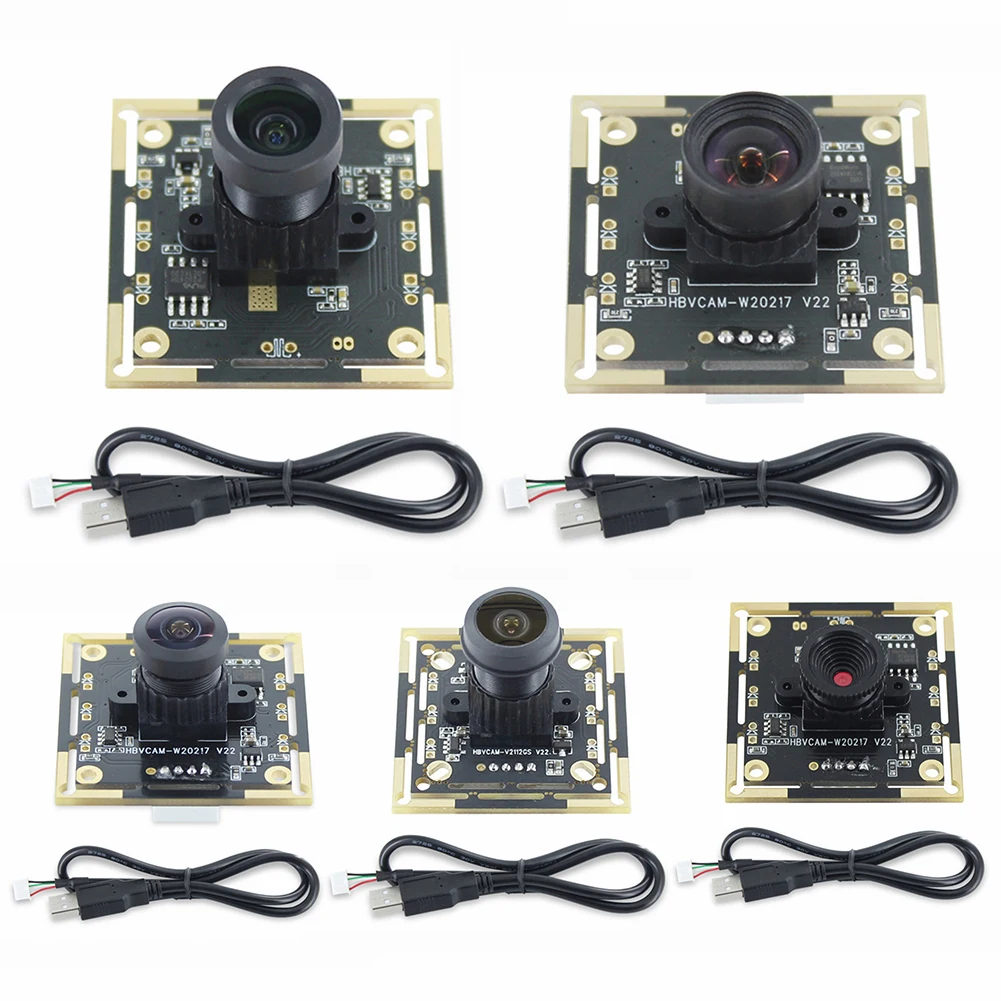

Type: 60 degrees, 72 degrees, 100 degrees, 160 degrees, 180 degrees (optional)
Model: HVB-W20217-V22
Pixels: 1 million pixels
Photosensitive chip: OV9732(1/4")
Field of view/focal length: 72°/3.6mm
Format: MJPG/YUY2
Resolution: 1280x720
Focus method: manual focus (twisting the lens)
Function introduction: QR code scanning, face recognition
Output interface: USB 2.0
Supported systems: Compatible with WinXP/Win7/Win8/Win10/Linux/ for Android

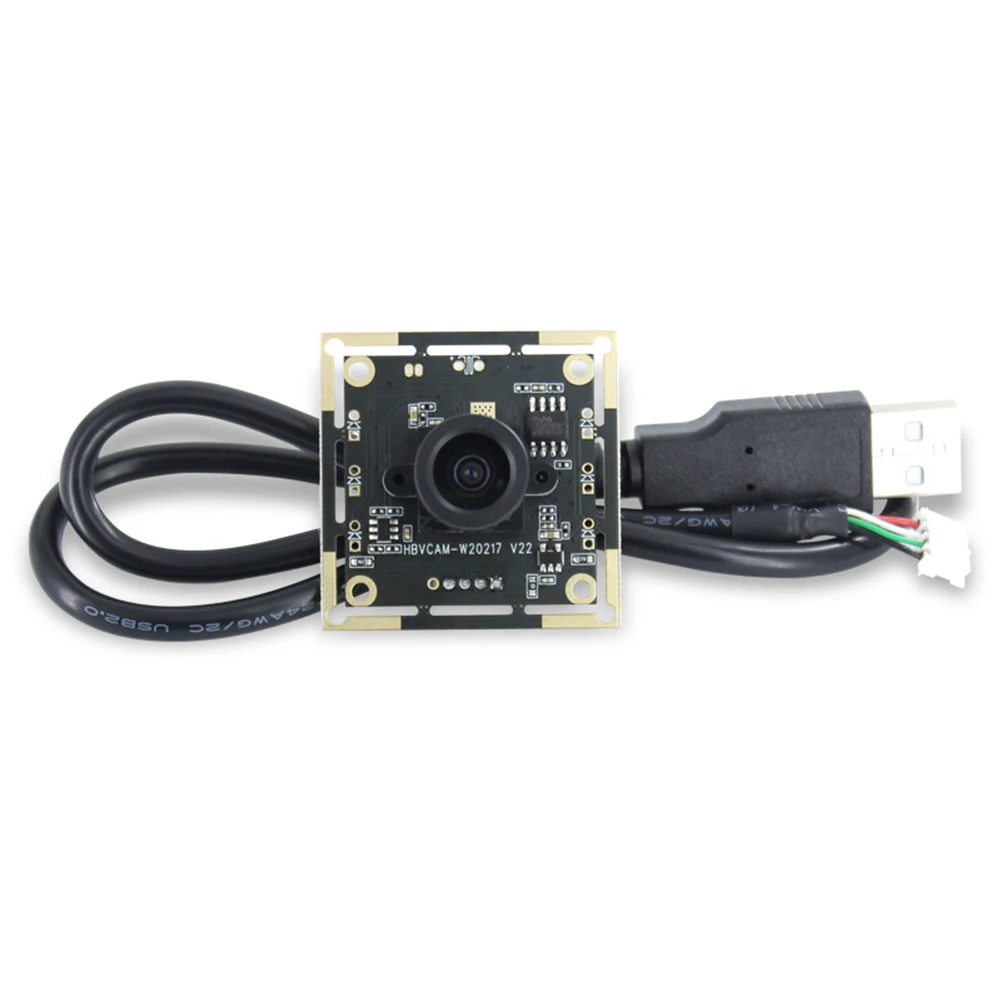

Cord: Standard 40cm
Working temperature: -20°C~70°C
Fill light: can connect 850/940 infrared light

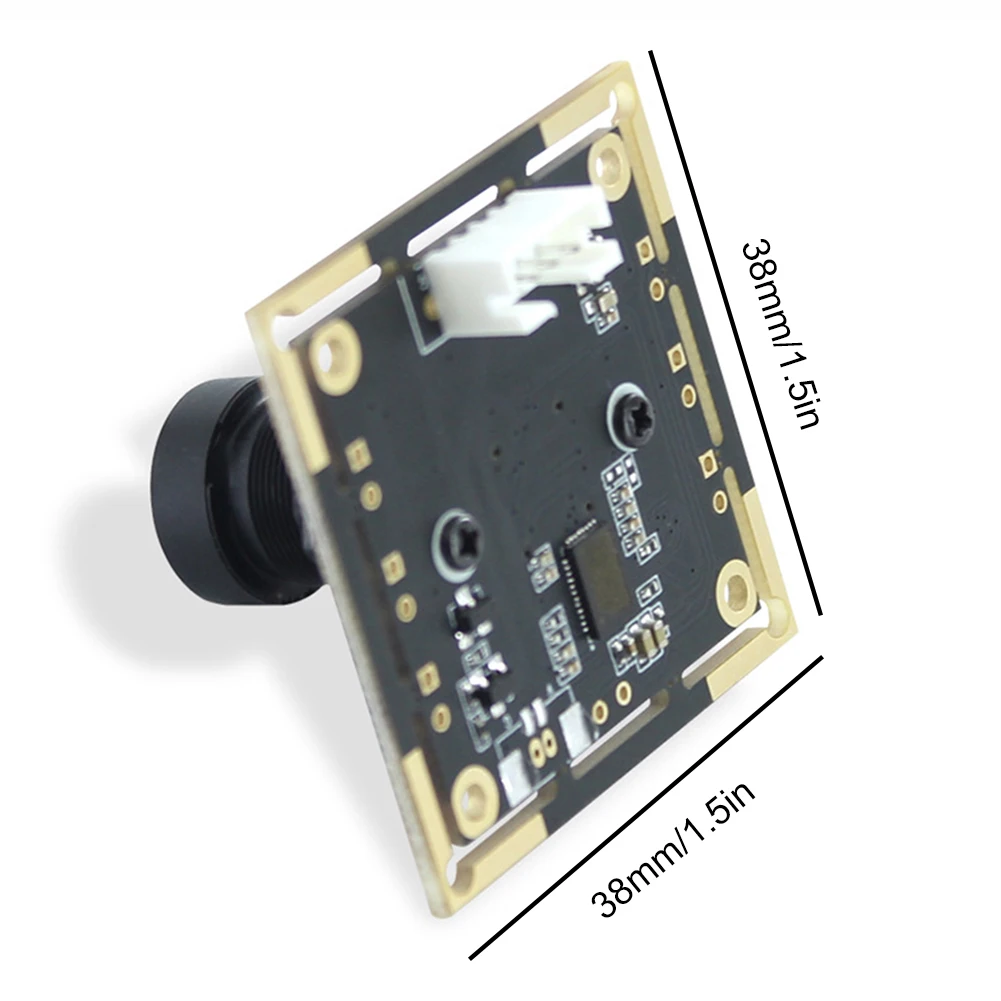

Product size: 38.00x38.00x23.00mm
Product size: 1.5x1.5x0.91inch

Note:
Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you!
Please allow 1-2cm measuring deviation due to manual measurement.
